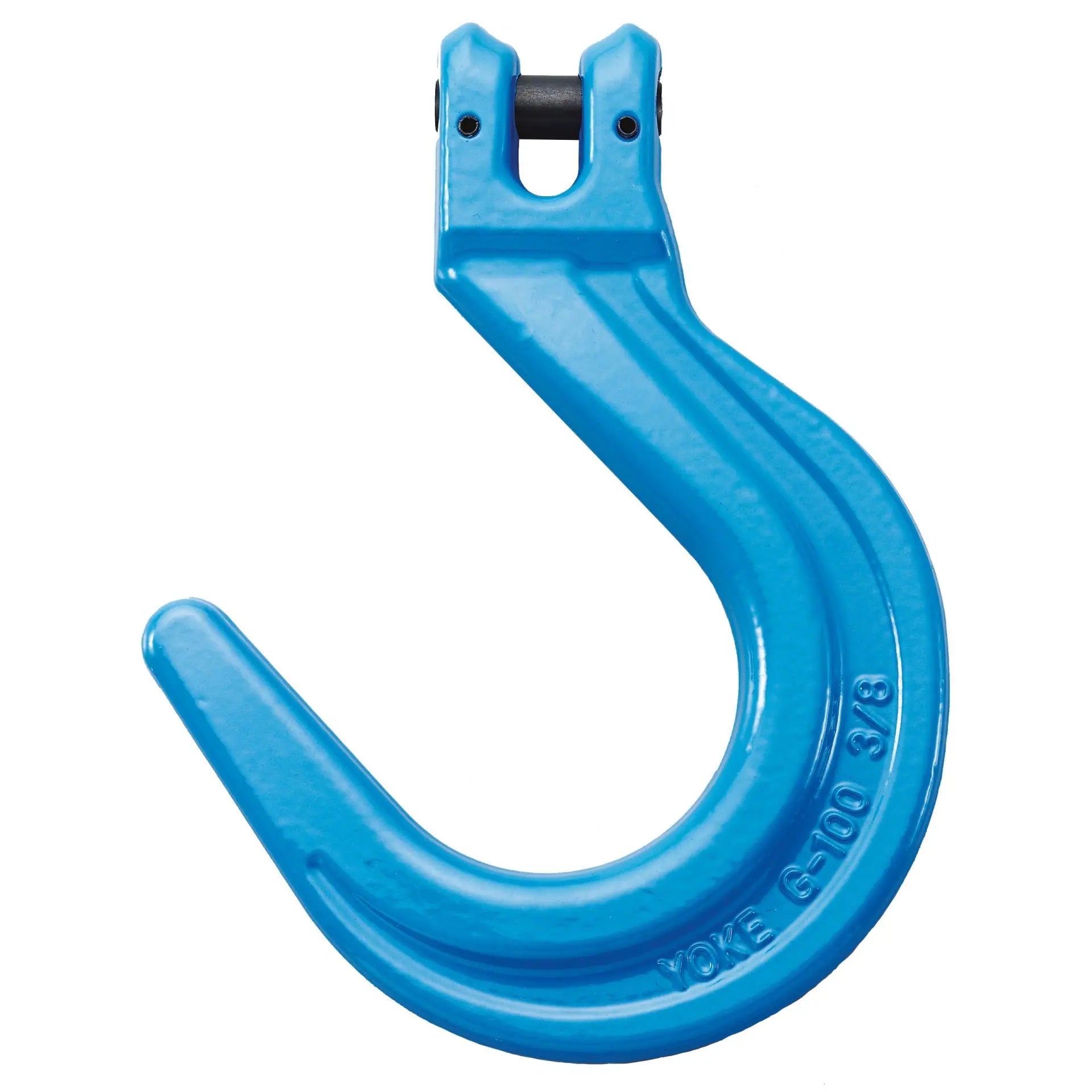

YOKE Grade 100 Clevis Foundry Hook
- Design factor 4:1 proof tested and certified
-
Quenched and Tempered Alloy Steel
-
At least 25% greater WLL than traditional G80 products
-
Manufactured in accordance with DIN PAS 1061 and ASTM A952/A 952M,EN 1677- 1
-
Certified by DGUV GS-OA-15-05
-
Fatigue rated to 20,000 cycles at 1.5 times the WLL
-
Tempering temperature minimum 400°C
-
Designed for the assembly of chain slings where wide throat openings are necessary
-
Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application
Spec
SKU |
Capacity (t) |
For Grade 100 Chain (mm) |
Weight (kg) |
276-62-1 |
2.5 |
7, 8 |
0.95 |
276-62-2 |
4 |
10 |
1.8 |
276-62-3 |
6.7 |
13 |
3.6 |
276-62-4 |
10 |
16 |
6.4 |
276-62-5 |
16 |
20 |
11.2 |
