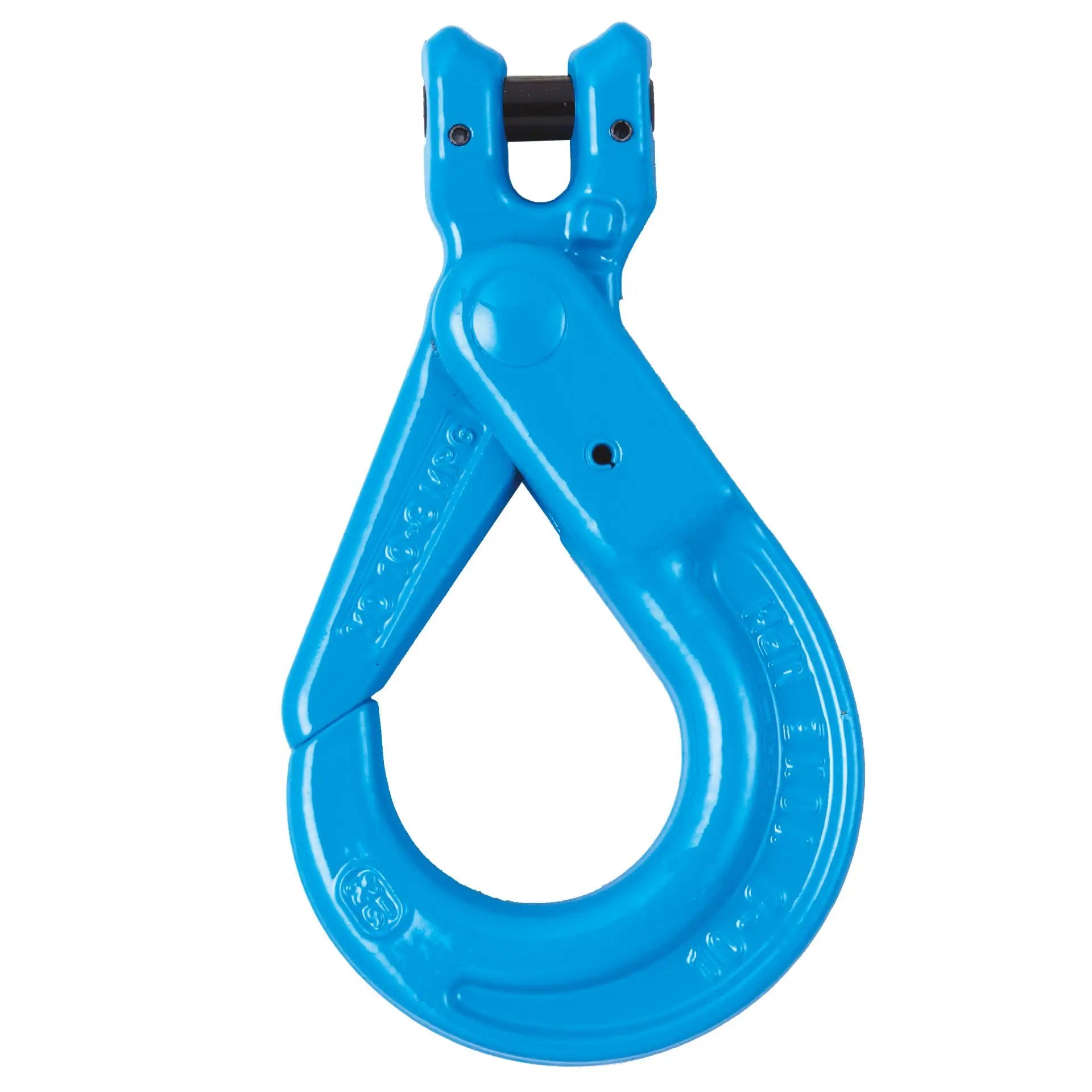

YOKE Grade 100 Clevis Self Locking Hook
-
Quenched and Tempered Alloy Steel
-
At least 25% greater WLL than traditional G80 products
-
Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10, PAS1061
-
Certified by DGUV GS-OA-15-05
-
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
-
Design Factor 4:1
-
Fatigue rated to 20,000 cycles at 1.5 times the WLL
-
Tempering temperature minimum 400°C
-
Magnaflux crack detection is performed 100% on each batch
Spec
SKU |
Capacity (t) |
For Grade 100 Chain (mm) |
Weight (kg) |
276-58-1 |
1.4 |
6 |
0.4 |
276-58-2 |
2.5 |
7, 8 |
0.9 |
276-58-3 |
4 |
10 |
1.4 |
276-58-4 |
6.7 |
13 |
3 |
276-58-5 |
10 |
16 |
5 |
276-58-6 |
16 |
20 |
11 |
276-58-7 |
19 |
22 |
13.5 |
