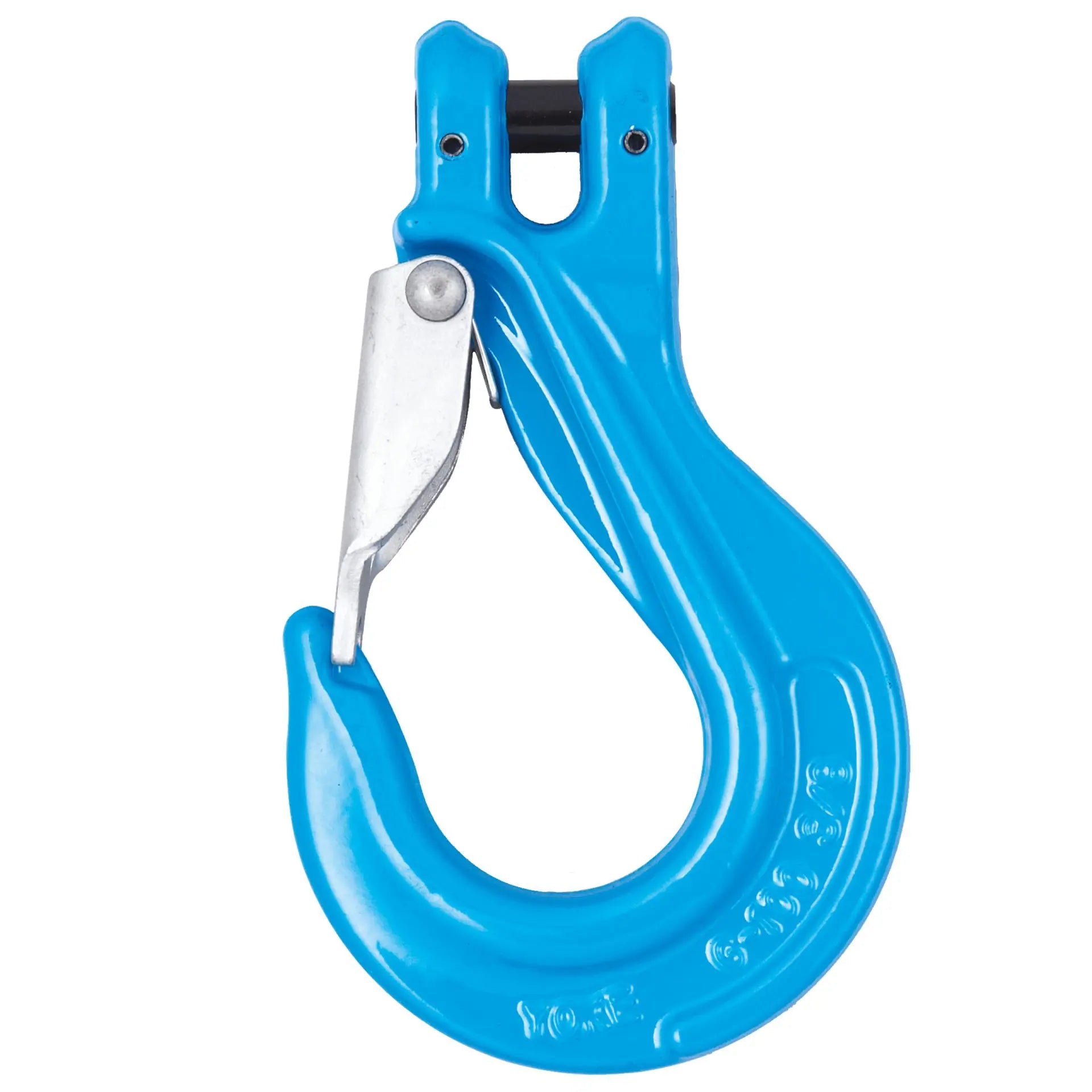

YOKE Grade 100 Clevis Sling Latch Hook
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677- 2 and ASME B30.26, ASME B30.10, PAS1061
- Certified by DGUV GS-OA-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Magnaflux crack detection is performed 100% on each batch
Spec
SKU |
Capacity (t) |
For Grade 100 Chain (mm) |
Weight (kg) |
276-64-1 |
1.4 |
6 |
0.3 |
276-64-2 |
2.5 |
7, 8 |
0.6 |
276-64-3 |
4 |
10 |
1.1 |
276-64-4 |
6.7 |
13 |
2.3 |
276-64-5 |
10 |
16 |
3.8 |
276-64-6 |
16 |
20 |
8.7 |
276-64-7 |
19 |
22 |
9.5 |
