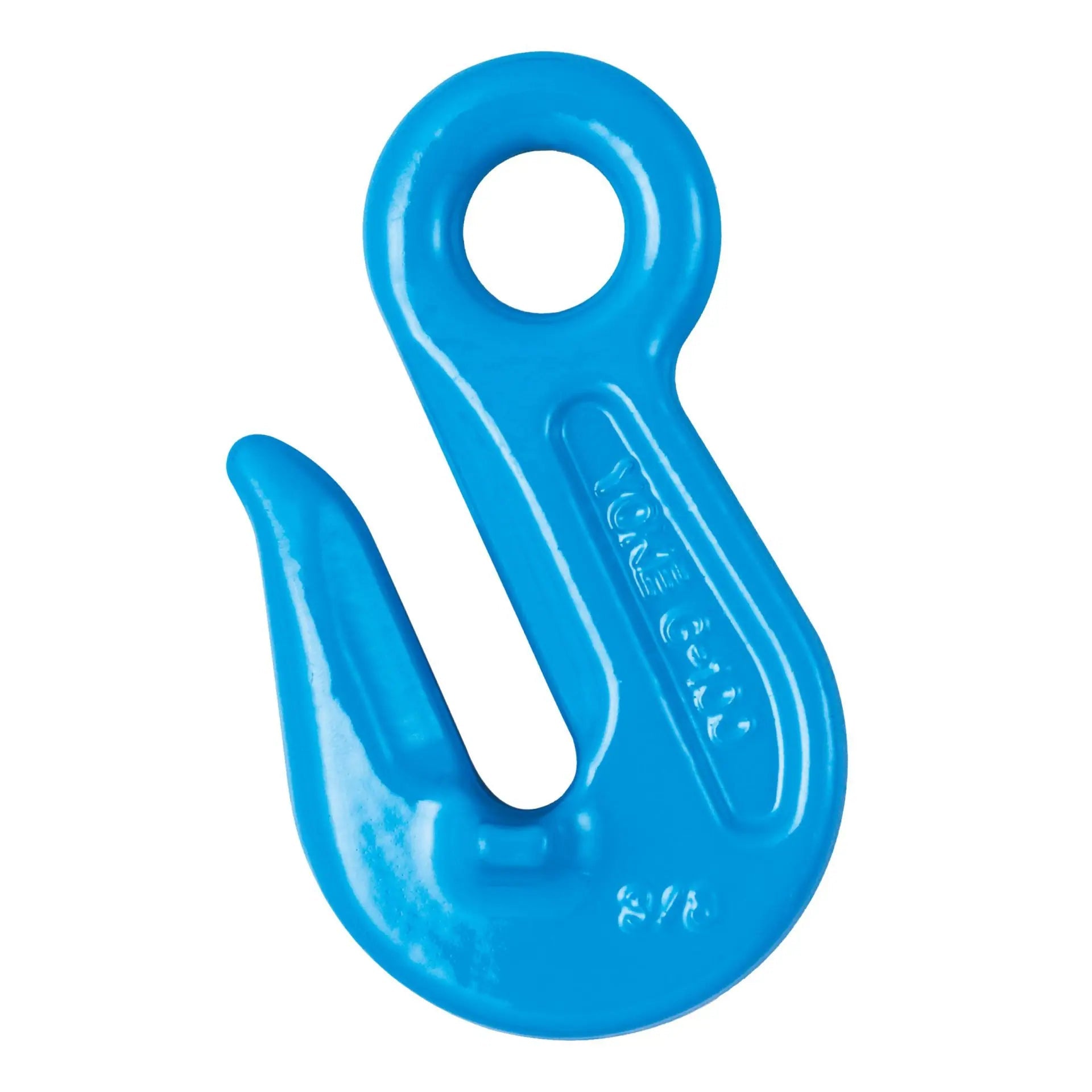

YOKE Grade 100 Eye Grab Hook
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with DIN 5692, EN 1677-1 and ASTM A952/A 952M
- Certified by DGUV GS-MO-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Not for use with Omega Link
- Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation
Spec
SKU |
Capacity (t) |
For Grade 100 Chain (mm) |
Weight (kg) |
276-59-1 |
1.4 |
6 |
0.2 |
276-59-2 |
2.5 |
7, 8 |
0.3 |
276-59-3 |
4 |
10 |
0.6 |
276-59-4 |
6.7 |
13 |
1.4 |
276-59-5 |
10 |
16 |
2.4 |
276-59-6 |
16 |
20 |
4 |
276-59-7 |
19 |
22 |
5 |
276-59-8 |
26.5 |
26 |
10 |
276-59-9 |
40 |
32 |
24 |
