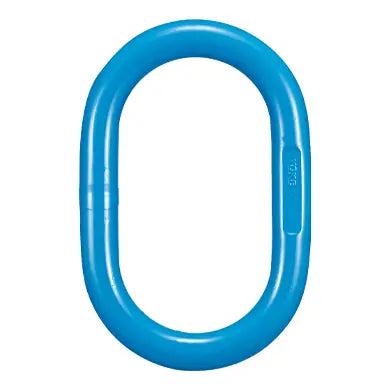

YOKE Grade 100 Welded Master Link to suit 1-Leg Chain Slings
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional Grade 80 products
- Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184
- Certified by DGUV GS-OA-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 5:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature at a minimum of 400°C
- Welded Master Link designed for 1-2 legs Chain, Wire Rope and Webbing Slings
- to suit 1-Leg Chain Sling - 276-54-1 / 12
- to suit 2-Leg Chain Sling - 276-54-21 / 32
- Each link is marked with batch number that links to the test certificate with full traceability to raw materials
Spec
SKU |
For Grade 100 Chain (mm) |
Capacity (t) |
Proof Load (kN) |
Weight (kg) |
276-54-1 |
6 , 7 , 8 |
2.8 |
69 |
0.4 |
276-54-2 |
10 |
4 |
98 |
0.7 |
276-54-3 |
13 |
6.7 |
164 |
1.1 |
276-54-4 |
13 |
8.9 |
208 |
1.6 |
276-54-5 |
16 |
11.5 |
282 |
2.4 |
276-54-6 |
16 |
13 |
319 |
3.9 |
276-54-7 |
20 |
17.1 |
417 |
5.1 |
276-54-8 |
22 |
24 |
588 |
6.9 |
276-54-9 |
26 |
28.1 |
688 |
8.9 |
276-54-10 |
26 |
38.3 |
938 |
12.8 |
276-54-11 |
32 |
45 |
1103 |
16.6 |
276-54-12 |
32 |
45 |
1103 |
16.6 |
