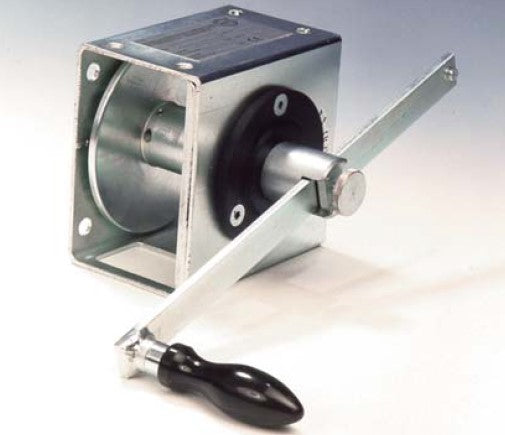

The SW100 braked spur gear rope winch is characterised by a simple design, which is corrosion-proof galvanised finish, easy to run and can be used for all purposes.
It has a 100kg lifting capacity combined with a large drum holding capacity of 39 metres of 3mm rope, which makes it unique amongst comparable lifting capacity hand winches.
Solid construction via closed housing. The SW100 is equipped with an automatic axial load pressure brake with safety catch which holds the load securely and safely in any position.
The spur gear is completely encapsulated with plain bearing requiring no maintenance. The crank is equipped with a turn able handle and is continuously adjustable in length and can be removed in an unloaded condition.

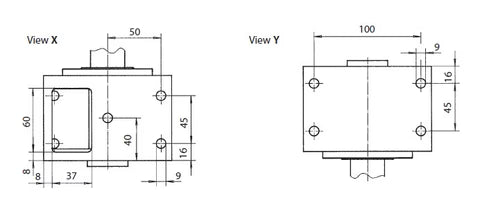

The winch can be simply fixed to a wall or to a console. The winch is constructed in accordance with the regulations for the prevention of accident, BGV D8.
Delivered without fixing material or rope.
Spec
Downloads
Product data sheet
