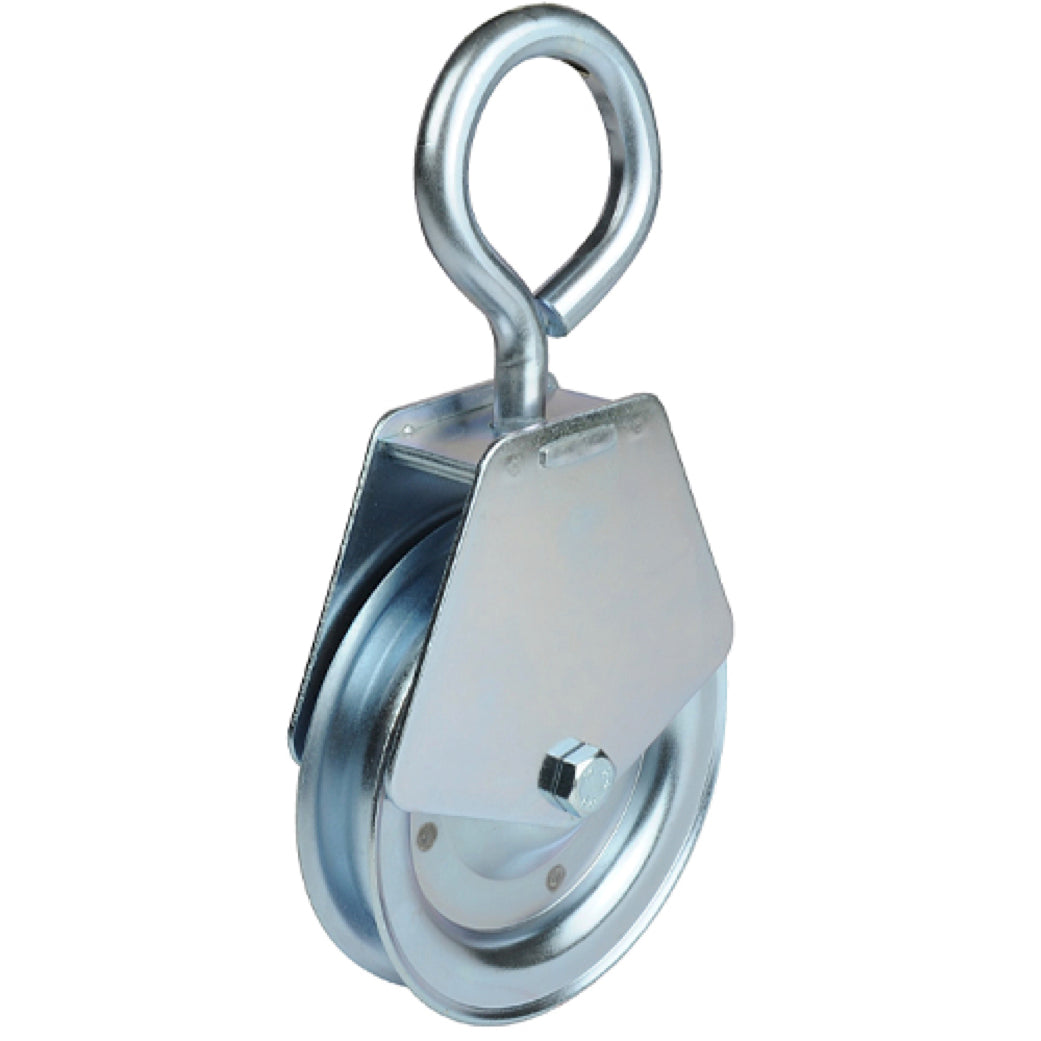

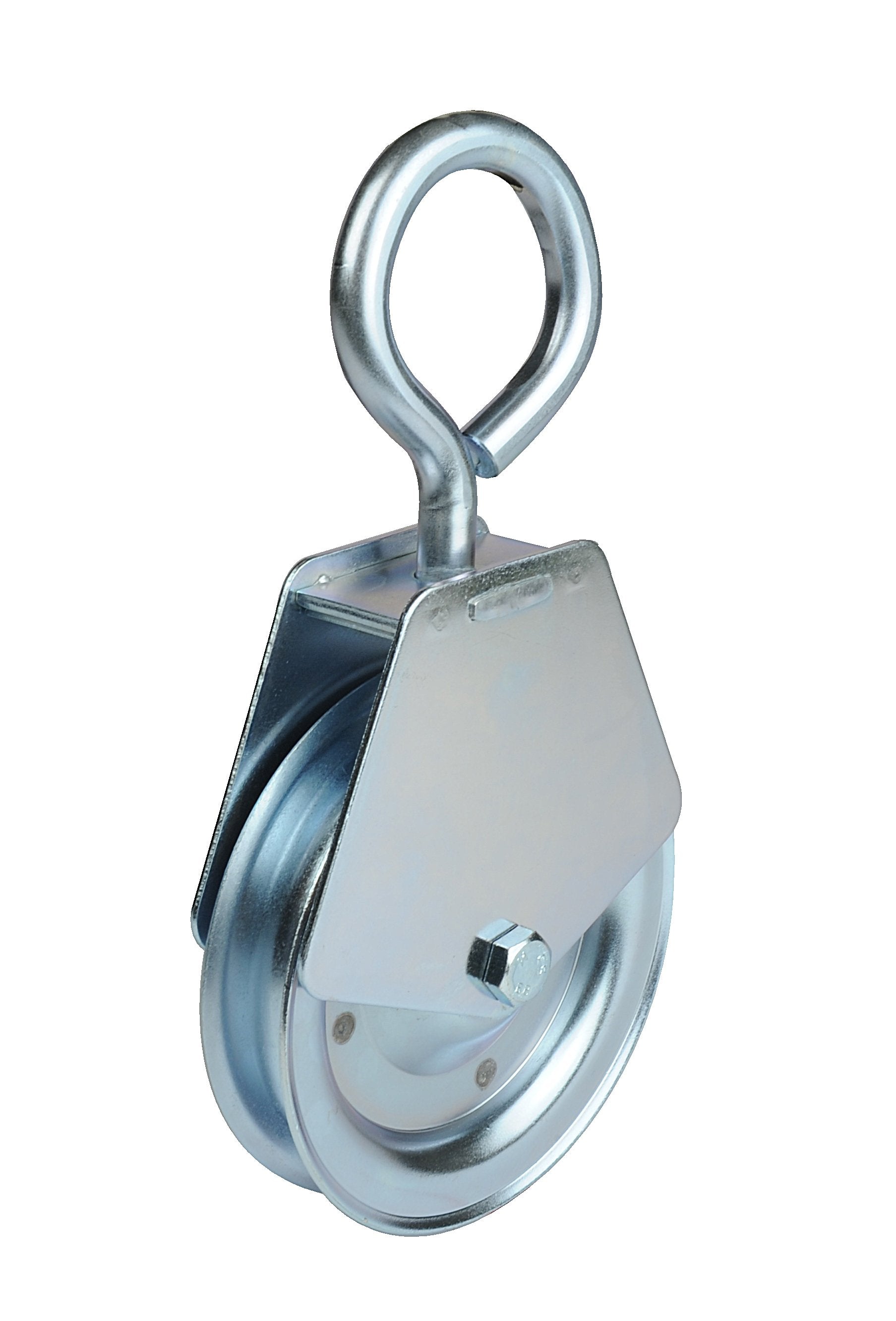

WEBI Pulley Type ETT-202 - Construction Site Pulley with Rotating Steel Hook for Scaffolding (ETTER)
- WEBI steel pulley / sheave with rotating hook for pulling materials on a construction site, for use on scaffolding up to 49mm (1 1/2") diameter.
- Plain bearing
- Material finish steel pulley with galvanised steel housing, steel hook with security spring
- Hook load capacities 140 kg and 200 kg (manual operation only)
- Width of groove on pulley to suit 16-20 mm or 20-25 mm rope (see specification PDF for full details)
- For use with hemp and synthetic fibre ropes
- SWISS MANUFACTURED
Not to be used for personal winching.
Spec
Model |
Capacity |
Pulley Diameter |
Rope Diameter |
155-23-1 |
200 kg |
140 mm |
16-20 mm |
155-23-2 |
250 kg |
200 mm |
20-25 mm |
Downloads
Pulley Cat 2018
Etter 202 Pulley Data Sheet
