Green Pin Super Grade 8 Bow Shackle with Screw Collar Pin
Skip to product information
1 of 2

Green Pin

Green Pin Super Grade 8 Bow Shackle with Screw Collar Pin

Green Pin Super Grade 8 Bow Shackle with Screw Collar Pin

SKU: 269-22-1

Read More
Regular price £32.58
Regular price RRP Sale price TODAY'S PRICE £32.58

In stock (7)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

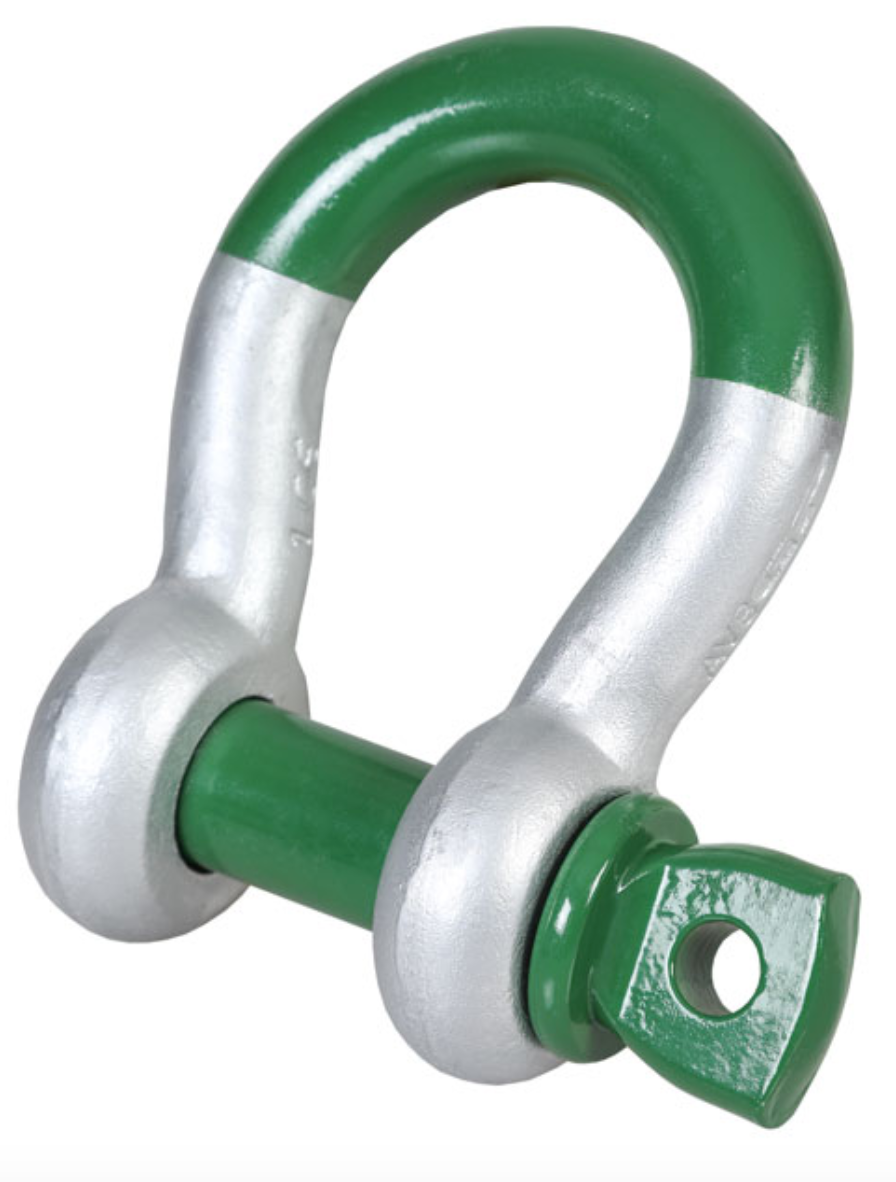

Green Pin Super Grade 8 Bow Shackle with Screw Collar Pin

  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade b.
  • Minimum breaking load is 5 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Full CAD support available upon request.
  • Certification - Declaration of Conformity
  • G-5261

Green Pin® Super Screw Pin Shackles are lightweight shackles which are useful for lifting jobs in which assembly and disassembly of the load occurs frequently. The grade 8 material of which the shackle is made ensures a higher WLL than a standard shackle of the same size. To reduce wear and increase the life span of counter components that rest on the pin (e.g. chain, wire and synthetic rope), all Green Pin® Super Screw Pin Shackles have a chamber in the shackle eye which hides the screw thread. Like all Green Pin® Super Shackles, this new screw pin shackle can be recognised by the green coloured crown



Spec

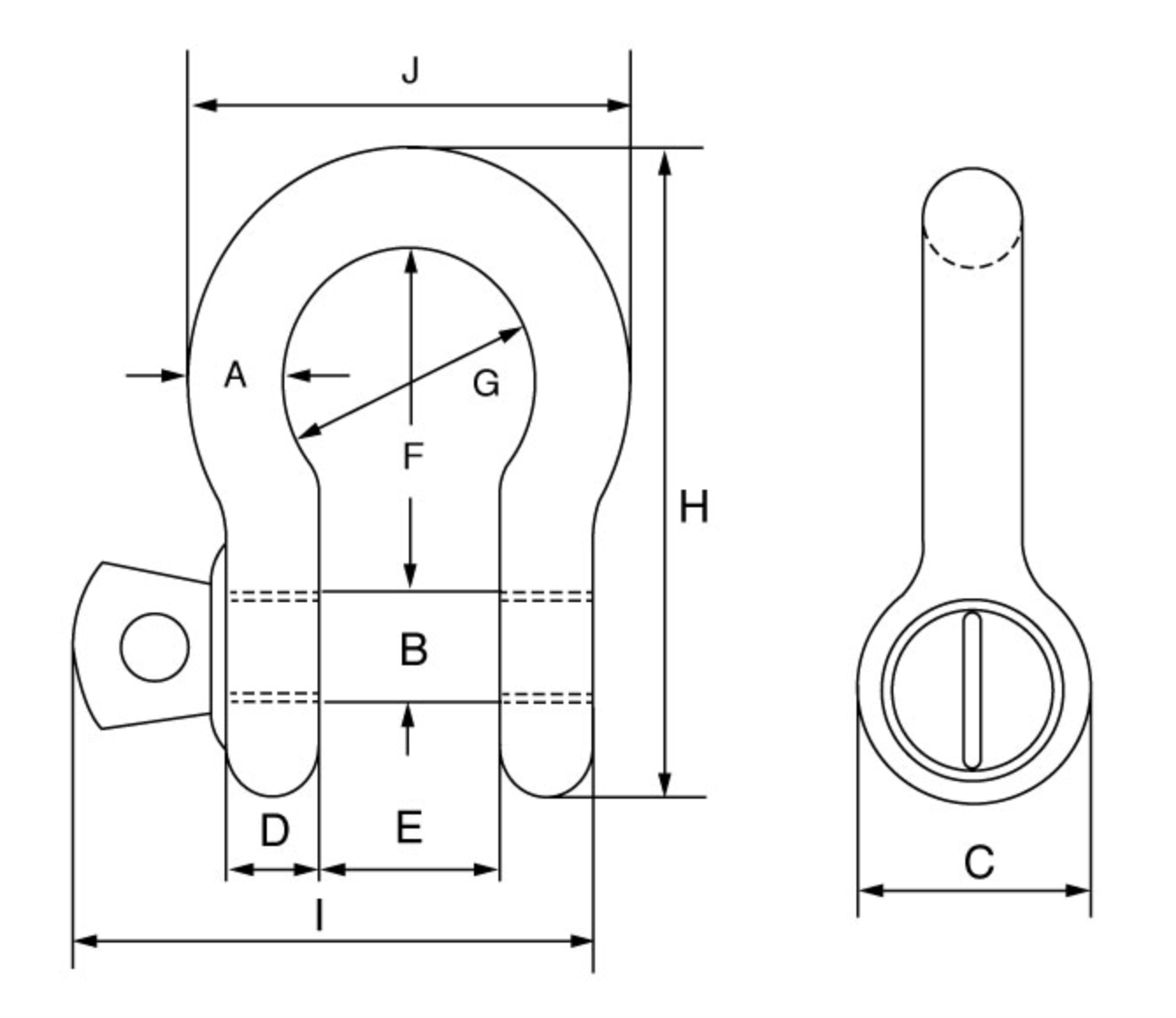

SKU W.L.L. A B C D E F G H I J Weight Technical
t mm mm mm mm mm mm mm mm mm mm kgs Specification
269-22-1 3.3 13.5 16 34 13 22 51 32 89 73 58 0.36 Download
269-22-2 5 16 19 40 16 27 64 43 110 89 75 0.63 Download
269-22-3 7 19 22 46 19 31 76 51 129 103 89 1.01 Download
269-22-4 9.5 22 25 52 22 36 83 58 144 119 102 1.5 Download
269-22-5 12.5 25 28 59 25 43 95 68 164 137 118 2.21 Download
