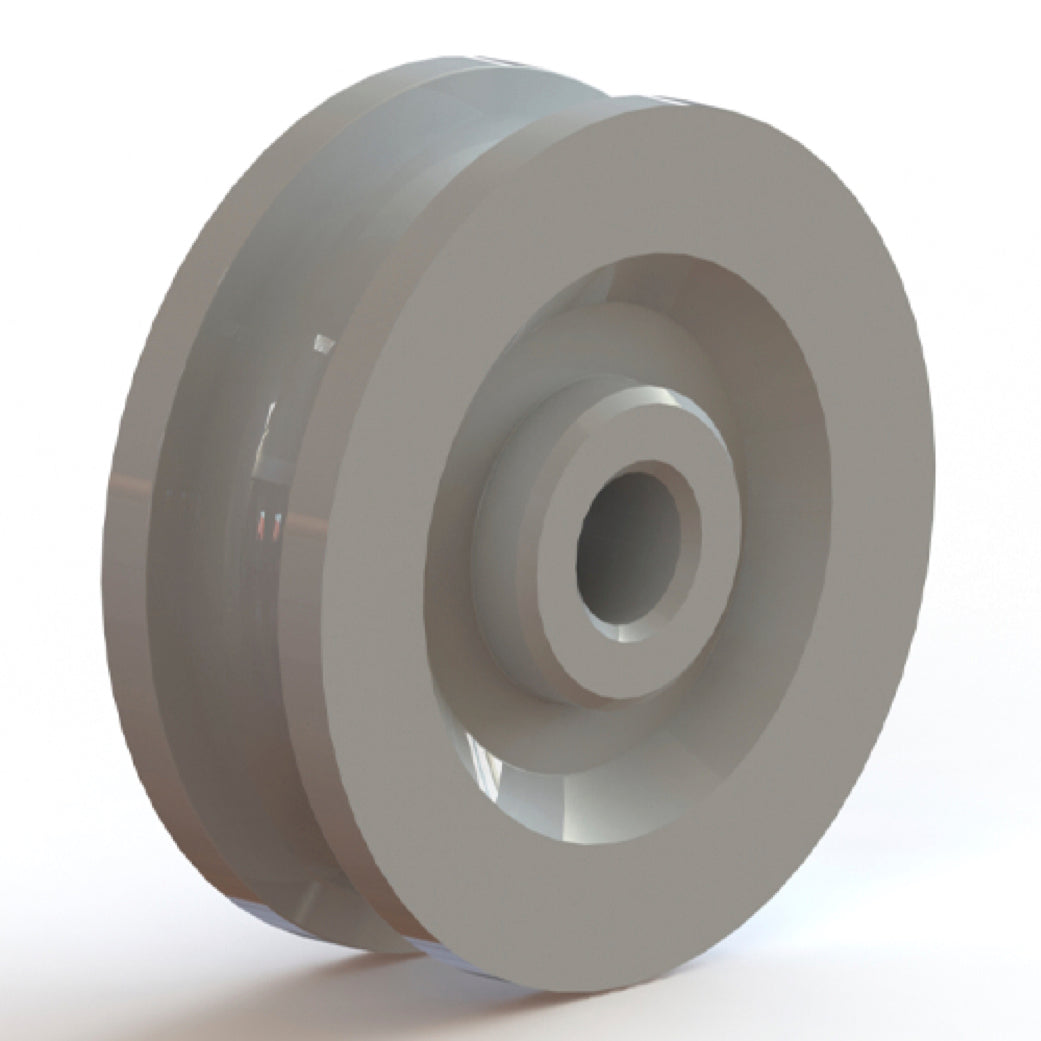

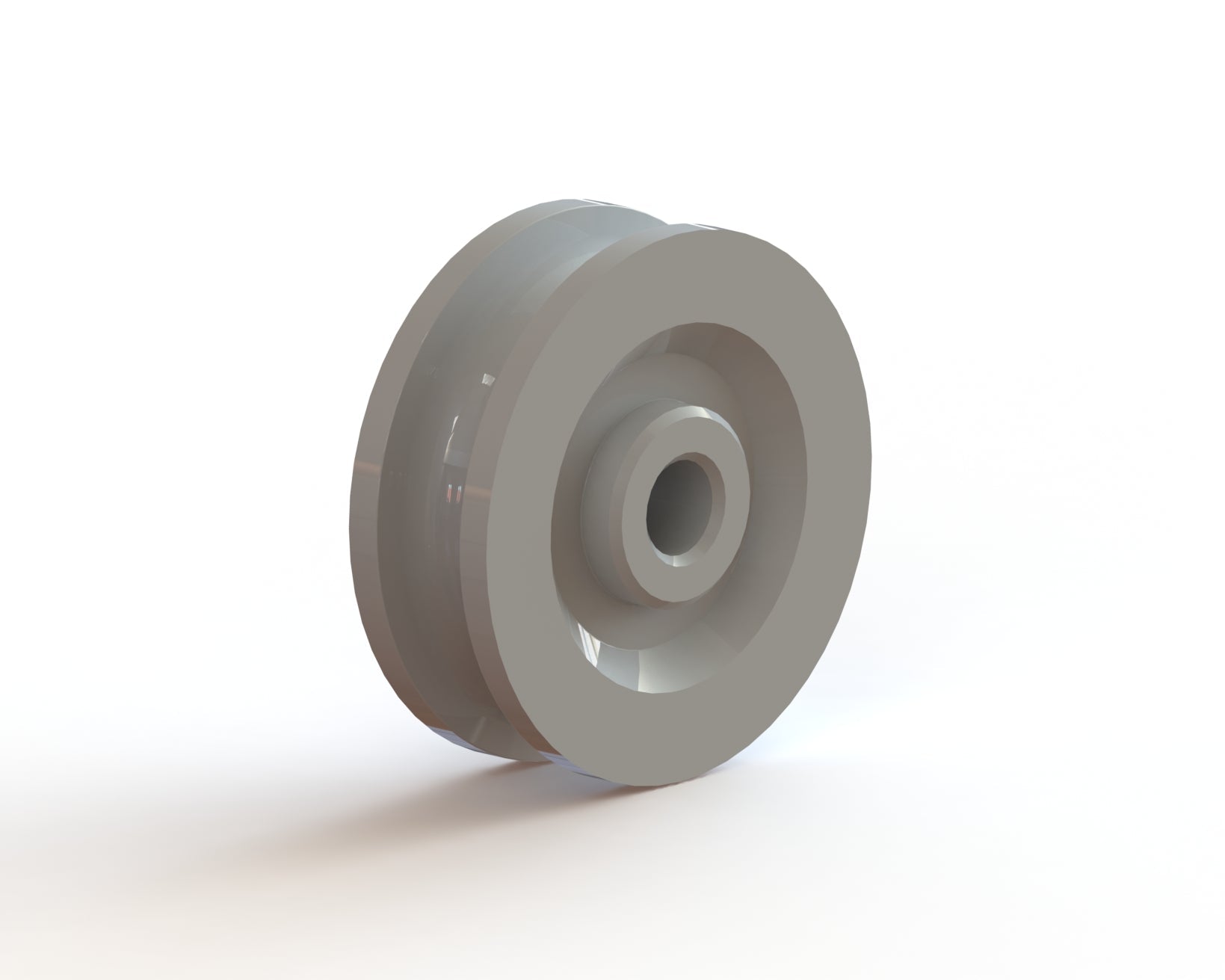

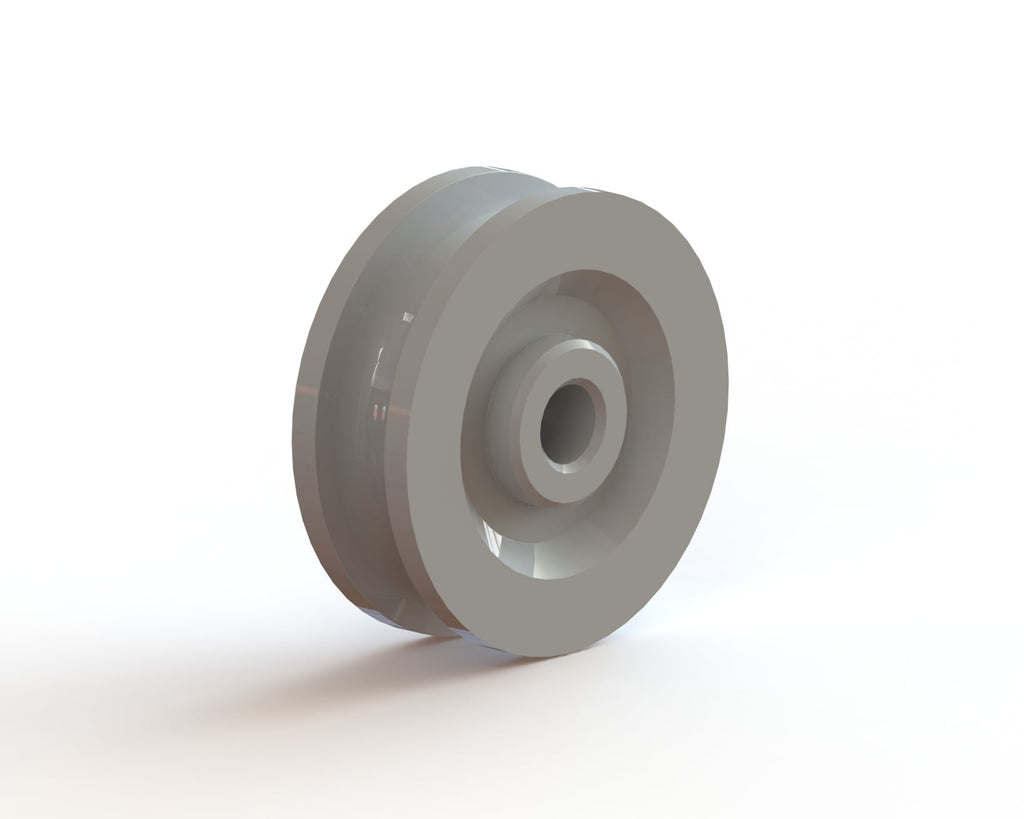

WEBI Pulley, Type ETT-190P- Polymide (PA 6 white) Pulley (ETTER) Ref: 155-9
- WEBI, Polyamide (PA 6 white)/ Nylon) pulley - Type ETT-190P
- The 190P range has capacities from 20kg - to 140kg
- Eight models, to suit 4 through to 16mm hemp or synthetic rope (see specification PDF for full details)
- For use with where diversion of rope is required.
- SWISS MADE "ETTER"
- All eight model types available from stock
- Quick ref 155-9
Spec
Model |
Capacity |
Pulley Diameter |
Rope Diameter |
155-9-1 |
20 kg |
20 mm |
4 mm |
155-9-2 |
20 kg |
30 mm |
5 mm |
155-9-3 |
30 kg |
40 mm |
8 mm |
155-9-4 |
40 kg |
50 mm |
8 mm |
155-9-5 |
60 kg |
60 mm |
10 mm |
155-9-6 |
90 kg |
80 mm |
12 mm |
155-9-7 |
120 kg |
100 mm |
16 mm |
155-9-8 |
140 kg |
120 mm |
16 mm |
Downloads
Pulley Cat 2018
Etter 190P Pulley Data Sheet
