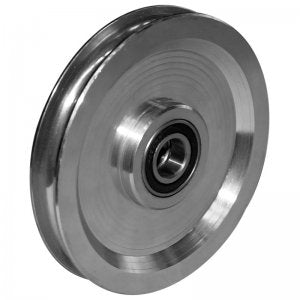

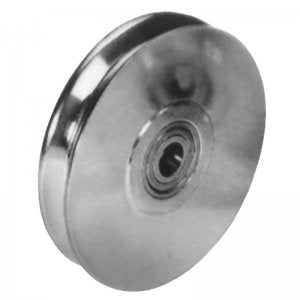

Steel Sheaves with Groove Ball Bearings (Model No. 1210)
Zinc-plated steel sheaves, with precision groove ball bearings.
Range of pulley capacity from 85kg up to 900kg
Range of pulley diameter from 75mm up to 216mm
Please note, if the quantity you require is not in stock these products have a lead-time of around 3 to 4 weeks from order date, please send your enquiry to sales@rigginguk.co.uk
Specification
SKU
|
|
182-1210-75 |
182-1210-100 |
182-1210-120
|
182-1210-134 |
182-1210-150 |
182-1210-216 |
Sheave External Ø
|
mm
|
75
|
100 |
120 |
134 |
150 |
216 |
Groove Base Ø
|
mm
|
65 |
87 |
102 |
116 |
132 |
200 |
Groove Radius
|
mm
|
2 |
3.25 |
3 |
2.5 |
5 |
4 |
Groove Depth
|
mm
|
5 |
6.5 |
9 |
9 |
9 |
8 |
Rim Width
|
mm
|
13 |
26 |
23.5 |
20 |
27 |
27 |
Bore for Bolt
|
mm
|
12 |
30 |
15 |
15 |
25 |
30 |
Hub Length
|
mm
|
13 |
26 |
26 |
20 |
27 |
27 |
Rope Ø max.
|
mm |
4 |
6 |
6 |
5 |
9 |
7 |
Ball Bearing Type |
|
6201-ZZ |
6006-ZZ |
2 x 6202-ZZ |
6302-2RS |
6205-ZZ |
6206-ZZ |
Load Capacity (in kg).
|
kg
|
85 |
155 |
205 |
195 |
450 |
900 |
Weight (in kg) approx.
|
kg
|
0.55 |
1.55 |
1.76 |
1.88 |
2.98 |
6.96 |
