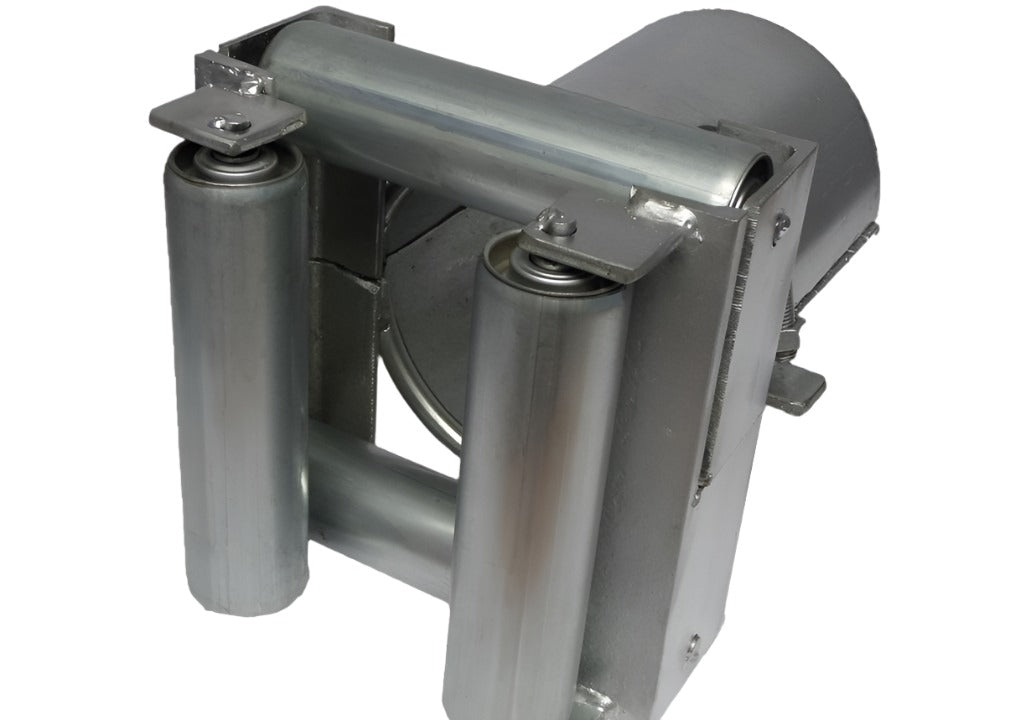

Steel Bellmouths with 4 Way Guide Rollers
In separable hinged halves to guide the cable through the duct to avoid damage to both the Cable or the Duct.
Constructed from steel and zinc plated for durability, these Bellmouths feature four rollers to ensure cable can move freely without rubbing against the duct edges. For secure installation, the Bellmouths are equipped with adjusting bolts and bronze bushes for easy rotation of the rollers.
The Bellmouths are fitted with guide rollers for additional rope guidance and protection.
These steel bell mouths have Zinc Plated Finish helping to prevent rust. Coating metal with Zinc increases the life-span of the underlying metal by creating a physical barrier. The barrier it produces stops moisture from penetrating the base metal, helping to prevent rust whilst being used on site.
Spec
117-3-1 For Ducts 99-106mm
117-3-2 For Ducts 124-130mm
117-3-3 For Ducts 148-155mm
117-3-4 For Ducts 152-176mm
117-3-5 For Ducts 170-180mm
117-3-6 For Ducts 194-212mm
117-3-7 For Ducts 220-239mm
117-3-8 For Ducts 246-266mm
